Ferrari Mondial QV Coupe & Cabriolet — Cylinder Head (Right) (diagram 005)

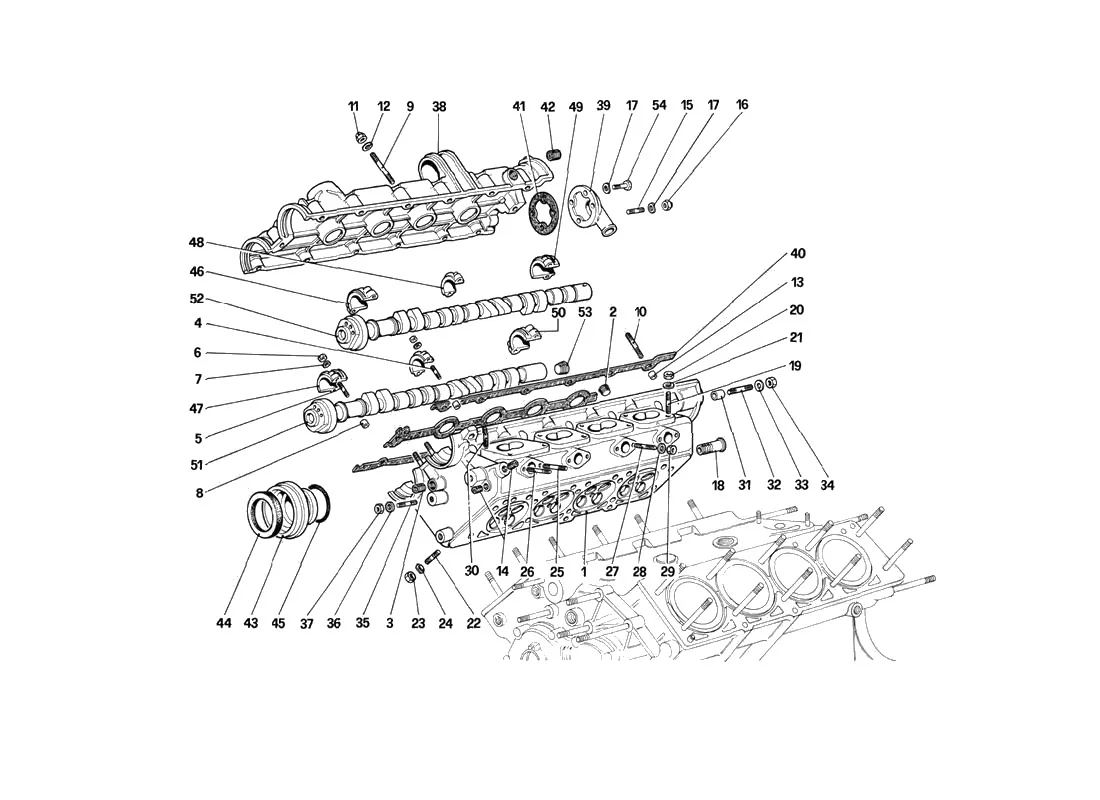

Exploded view of the cylinder head (right) on the Ferrari Mondial QV Coupe & Cabriolet, with 86 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Mondial QV Coupe & Cabriolet Cylinder Head (Right) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1111917Ferrari RH Cylinder Head Complete - 111917Price on requestContact us for price and availability
1117749Ferrari RH Cylinder Head - 117749Price on requestContact us for price and availability
210269750Ferrari Plug-10269750$3.99In stock
313526070Ferrari Threaded Insert - 13526070Price on requestContact us for price and availability
4102735Ferrari Stud - 102735$16.86Available, ships in 3-6 days
5102754Ferrari Stud - 102754$9.74Available, ships in 3-6 days
615896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
711197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
711197773Ferrari Washer - 11197773SupersededOrder 11197774 instead
8102725Ferrari/Maserati Dowel - 102725$2.79In stock
913541621Ferrari Stud 6x12 Stem 35 - 13541621SupersededOrder 13541624 instead
1013541721Ferrari Stud 6 x 12 Stem 40 - 13541721Price on requestContact us for price and availability
11100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
1211197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
1414326150Ferrari/Maserati Threaded Plug - 14326150$2.56In stock
1511500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
1511500521Ferrari Stud - 11500521SupersededOrder 11500524 instead
16102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
1612575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
1712601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1712601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
18106227Ferrari Union M16 x 1.5 - 106227$12.44Available, ships in 3-6 days
1913543321Ferrari Short Stud - 13543321SupersededOrder 13543324 instead
1913543324Ferrari Stud M8 x 16 - Shank 20mm - 13543324$11.58Available, ships in 3-6 days
2016100824Ferrari/Maserati Nut - 16100824$0.30In stock
2016100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
2111198074Ferrari/Maserati Washer - 11198074$0.14In stock
2111198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
2212354521Ferrari Stud - 12354521SupersededOrder 12354524 instead
23114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
23105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
24127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2410516671Ferrari Washer - 10516671SupersededOrder 127496 instead
2713541821Ferrari Stud - 13541821SupersededOrder 13541824 instead
3013543524Ferrari Stud Bolt M8x16 -Shank length 25- - 13543524$9.16Available, ships in 3-6 days
3013543521Ferrari Stud - 13543521SupersededOrder 13543524 instead
3612601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
3612601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
37104030Ferrari/Maserati Nut - 104030$0.88In stock
3716104411Ferrari Nyloc Nut M8 x 8.5 - 16104411$0.46Available, ships in 3-6 days
38111564Ferrari RH Cam Cover (Part of Cylinder) - 111564Price on requestContact us for price and availability
38117220Ferrari RH Cam Cover - 117220$2,605.57Available, ships in 3-6 days
38117220/UFerrari RH Cam Cover - 117220/U$2,590.24Available, ships in 3-6 days
39103808Ferrari Cover - 103808Price on requestContact us for price and availability
40AW3324000Ferrari 308 QV/328/Mondial 4V Cam Cover Gasket Kit - AW3324000$163.90In stock
40150078Ferrari Cam Cover Gasket - 150078$42.90In stock
40AW3F40000Ferrari F40 Cam Cover Gasket Kit - AW3F40000$163.90In stock
40117263Ferrari RH Cam Cover Gasket - 117263SupersededOrder 150078 instead
41151342Ferrari End Cover Gasket-151342$5.50In stock
41103809Ferrari End Plate Gasket - 103809SupersededOrder 151342 instead
4213525470Ferrari Heli Coil - 13525470$1.05Available, ships in 3-6 days
43117257Ferrari Cam Oil Seal Housing - 117257$715.00In stock
44AW1322000Ferrari 308 GTBi/GTSi Cam Seal Kit - AW1322000$162.80In stock
44163987Ferrari Camshaft Seal - 163987$35.68In stock
44AW1320000Ferrari 308 GT4/GTB/GTS Cam Seal Kit - AW1320000$174.90In stock
44105389Ferrari Sealing Ring - 105389SupersededOrder 163987 instead
45117275Ferrari Cam Housing O-Ring - 117275$5.26In stock
46117039Ferrari Camshaft Cap Inlet - 117039Price on requestContact us for price and availability
47117040Ferrari Camshaft Cap Exhaust - 117040Price on requestContact us for price and availability
48117043Ferrari Intermediate Camshaft Cap - 117043Price on requestContact us for price and availability
49117044Ferrari Camshaft Cap Unfinished Needs Grinding - 117044Price on requestContact us for price and availability
50117045Ferrari Camshaft Cap Unfinished Needs Grinding - 117045$390.81Available, ships in 3-6 days
51117235Ferrari RH Exhaust Camshaft Complete - 117235$2,011.99Available, ships in 3-6 days
51117125Ferrari RH Exhaust Camshaft - 117125SupersededOrder 117235 instead
52117932Ferrari RH Intake Camshaft - 117932SupersededOrder 117933 instead
52117933Ferrari RH Intake Camshaft Complete - 117933$2,139.82Available, ships in 3-6 days
5410902221Ferrari Bolt M6 x 16 - 10902221$1.92Available, ships in 3-6 days
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
119067Ferrari End Plate Gasket - 119067SupersededOrder 151342 instead
104657Ferrari Heli Coil - 104657Price on requestContact us for price and availability
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
126811Ferrari Rear Cam Cap - 126811Price on requestContact us for price and availability
13516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
136526Ferrari Sealing Ring - 136526SupersededOrder 163987 instead
4146561Ferrari Stud - 4146561Price on requestContact us for price and availability
13541724Ferrari Stud 6x12 Stem 40 - 13541724Price on requestContact us for price and availability
13541824Ferrari Stud 6x12 Stem 45 - 13541824$3.45Special order, ships in 7-14 days
12354524Ferrari Stud M8 x 16 Gambo 22mm - 12354524$59.07Available, ships in 3-6 days
103372Ferrari Washer - 103372SupersededOrder 12601279 instead

All Mondial QV Coupe & Cabriolet diagrams
