Ferrari 512 BB (Carburetor) — Lubrication - Blow-By And Oil Reservoir (diagram 012)

Exploded view of the lubrication - blow-by and oil reservoir on the Ferrari 512 BB (Carburetor), with 91 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

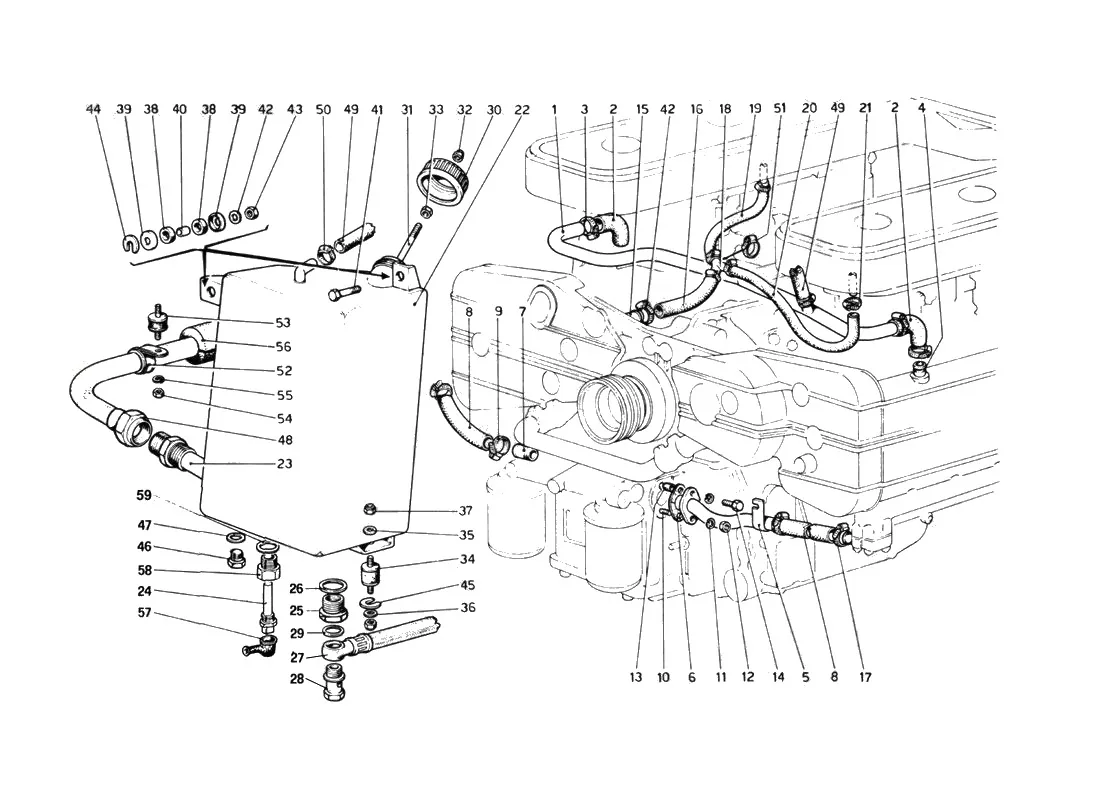

Ferrari 512 BB (Carburetor) Lubrication - Blow-By And Oil Reservoir exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1110885Ferrari Tube - 110885Price on requestContact us for price and availability
2104873Ferrari Blow By Hose - 104873$41.80In stock
313000590Ferrari Hose Clip 25 - 40mm - 13000590$1.48Available, ships in 3-6 days
3105622Ferrari Hose Clip - 105622$1.48Available, ships in 3-6 days
4102705Ferrari Union - 102705Price on requestContact us for price and availability
5109770Ferrari Tube - 109770$297.08Available, ships in 3-6 days
6150193Ferrari Oil Line Gasket - 150193$5.45In stock
6104558Ferrari Gasket - 104558SupersededOrder 150193 instead
7104561Ferrari Union - 104561$13.90Available, ships in 3-6 days
8122828Ferrari Breather Hose - 122828$31.35In stock
8104562Ferrari Hose - 104562SupersededOrder 122828 instead
1011500221Ferrari Threaded Stud - 11500221SupersededOrder 11500224 instead
11127494Ferrari Lock Washer - 127494$0.50In stock
11106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
12134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
1215896221Ferrari Nut - 15896221SupersededOrder 134041 instead
13109668Ferrari Heli Coil - 109668Price on requestContact us for price and availability
1410902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
1410902321Ferrari Bolt - 10902321SupersededOrder 10902324 instead
15105195Ferrari Water Pump Union - 105195$80.12Available, ships in 3-6 days
16110886Ferrari Tube - 110886$16.81Available, ships in 3-6 days
18110889Ferrari Union - 110889Price on requestContact us for price and availability
19110888Ferrari RH 3 Way Connector Pipe - 110888Price on requestContact us for price and availability
20110887Ferrari Hose - 110887$132.15Available, ships in 3-6 days
21100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
2113000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
22110644Ferrari Oil Tank - 110644Price on requestContact us for price and availability
23110665Ferrari Filter - 110665$577.36Available, ships in 3-6 days
24107576Oil Temperature Sender - Thermistor - 107576$148.80In stock
25109721Ferrari Bush - 109721$104.57Available, ships in 3-6 days
2610265060Ferrari Copper Washer - 10265060$2.80In stock
27109536Ferrari Oil Pipe - 109536Price on requestContact us for price and availability
28109694Ferrari Bolt - 109694Price on requestContact us for price and availability
2910264660Ferrari Copper Washer - 10264660$4.72In stock
30109719Ferrari Oil Tank Cap - 109719Price on requestContact us for price and availability
31110754Ferrari Dipstick - 110754$98.59Available, ships in 3-6 days
32100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
3315896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
34101495Ferrari Support Mount - 101495$20.25In stock
3512646201Ferrari Washer - 12646201$1.02Available, ships in 3-6 days
3610519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
3610519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
3716100824Ferrari/Maserati Nut - 16100824$0.30In stock
3716100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
38107978Ferrari Mounting Rubber - 107978$13.75In stock
39107979Ferrari Cap - 107979$21.58Available, ships in 3-6 days
40107980Ferrari Spacer D. 9 - 12 x 14 - 107980$11.83Available, ships in 3-6 days
4116043934Ferrari Screw M8 x 35 - 16043934$0.54Available, ships in 3-6 days
4116043921Ferrari Bolt - 16043921SupersededOrder 16043934 instead
42127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
42106852Ferrari Spring Washer 8mm - 106852Price on requestSpecial order, ships in 7-14 days
44106471Ferrari Spacing Washer 2mm - 106471$18.23Available, ships in 3-6 days
44106472Ferrari Spacing Washer 3mm - 106472$21.01Available, ships in 3-6 days
44106470Ferrari Spacing Washer 1mm - 106470$18.09Available, ships in 3-6 days
45101039Ferrari Suspension Shim - 101039$3.25In stock
45107338Ferrari Shim Washer 1.50mm - 107338$3.14Available, ships in 3-6 days
45107339Ferrari Shim Washer 2.00mm - 107339$3.91Available, ships in 3-6 days
45107340Ferrari Shim Washer 2.50mm - 107340$4.14Available, ships in 3-6 days
45107341Ferrari Shim Washer 3.00mm - 107341$3.14Available, ships in 3-6 days
45107342Ferrari Shim Washer 3.25mm - 107342$1.80Available, ships in 3-6 days
4610275001Ferrari Plug - 10275001SupersededOrder 10275011 instead
4710263460Ferrari/Maserati Copper Washer - 10263460$1.93In stock
48109537Ferrari 512 BB/BBi Oil Cooler Line-109537$657.80Contact us
49110890Ferrari Hose - 110890Price on requestContact us for price and availability
51105550Ferrari Colson Type Clamp - 105550Price on requestContact us for price and availability
5210442190Ferrari P Clip Bracket With Sheath - 10442190$1.42Available, ships in 3-6 days
53102947Ferrari Vibration Dampening Support - 102947$8.31In stock
56110793Ferrari Insulation Tubing - 110793Price on requestContact us for price and availability
57107003Ferrari Connector Rubber Boot - 107003$40.40Available, ships in 3-6 days
57107003/AFerrari Connector Rubber Boot - 107003/A$40.17Available, ships in 3-6 days
58112256Ferrari Union - 112256$54.72Available, ships in 3-6 days
5910257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
10275011Ferrari Crankcase/Gearbox Drain Plug and Gasket - 10275011$15.15In stock
13525570Ferrari Heli-Coil - 13525570Price on requestContact us for price and availability
116785Ferrari Hose (140mm) - 116785Price on requestContact us for price and availability
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
126141Ferrari Oil Filler Cap - 126141$283.88Special order, ships in 7-14 days
10305140Ferrari Plug - 10305140SupersededOrder 10275011 instead
10305171Ferrari Plug - 10305171SupersededOrder 10275011 instead
11500224Ferrari Stud - 11500224$0.82Available, ships in 3-6 days
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
107422Ferrari Washer 3.25mm - 107422SupersededOrder 107342 instead

All 512 BB (Carburetor) diagrams
