Ferrari 512 BB (Carburetor) — Cylinder Head (Left) (1978 Revision) (diagram 004A)

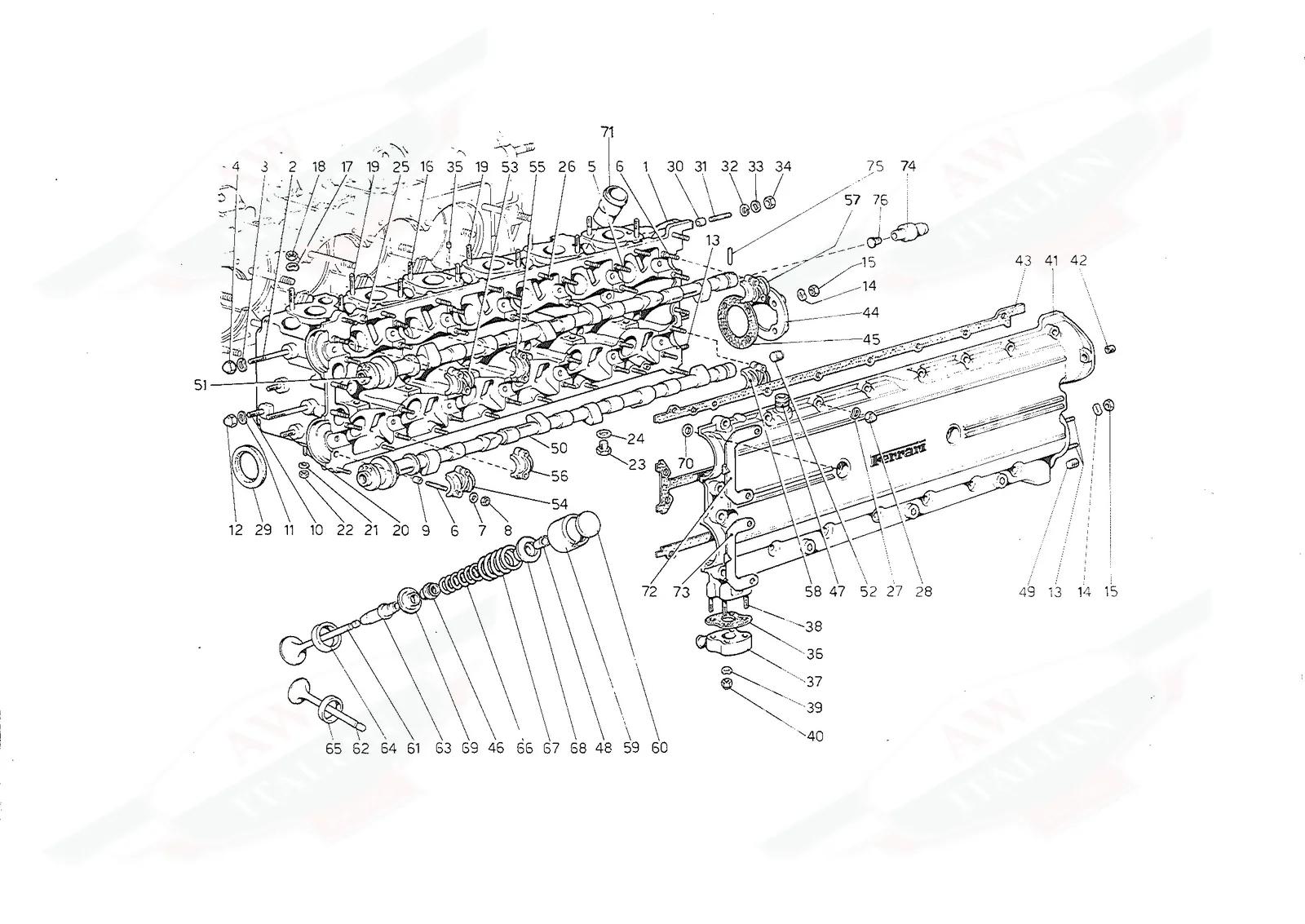

Exploded view of the cylinder head (left) (1978 revision) on the Ferrari 512 BB (Carburetor), with 167 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 512 BB (Carburetor) Cylinder Head (Left) (1978 Revision) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1108331Ferrari LH Cylinder Head - 108331Price on requestContact us for price and availability
1108591Ferrari LH Cylinder Head Complete - 108591Price on requestContact us for price and availability
213518121Ferrari Stud - 13518121Price on requestContact us for price and availability
312601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
312601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
4101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
5102735Ferrari Stud - 102735$16.86Available, ships in 3-6 days
6102754Ferrari Stud - 102754$9.74Available, ships in 3-6 days
711197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
711197773Ferrari Washer - 11197773SupersededOrder 11197774 instead
815896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
9102725Ferrari/Maserati Dowel - 102725$2.79In stock
1013516824Ferrari/Maserati Stud - 13516824$0.58In stock
1013516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
1311500321Ferrari Stud - 11500321Price on requestContact us for price and availability
1412601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1412601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
15102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
1613517021Ferrari Threaded Stud 8x12 Stem 25mm - 13517021$5.61Available, ships in 3-6 days
1711198074Ferrari/Maserati Washer - 11198074$0.14In stock
1711198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
1816100824Ferrari/Maserati Nut - 16100824$0.30In stock
1816100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
1913517321Ferrari Threaded Stud - 13517321$36.72Available, ships in 3-6 days
21127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2110516673Ferrari Washer - 10516673SupersededOrder 127496 instead
22114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
22105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
2310300740Ferrari Drain Plug - 10300740$39.58Special order, ships in 7-14 days
2410257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
2613541324Ferrari Stud - 13541324$2.08In stock
2613541321Ferrari Stud 6x12mm - 13541321SupersededOrder 13541324 instead
28100044Ferrari Cam Cover Nut - 10pack - 100044$9.85In stock
29AW1322000Ferrari 308 GTBi/GTSi Cam Seal Kit - AW1322000$162.80In stock
29163987Ferrari Camshaft Seal - 163987$35.68In stock
29AW1320000Ferrari 308 GT4/GTB/GTS Cam Seal Kit - AW1320000$174.90In stock
29105389Ferrari Sealing Ring - 105389SupersededOrder 163987 instead
30102704Ferrari Dowel - 102704$6.10Available, ships in 3-6 days
3113517421Ferrari Stud - 13517421$50.75Special order, ships in 7-14 days
3210519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
3210519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
35100185Ferrari Dowel - 100185$22.36Available, ships in 3-6 days
36148860Ferrari Oil Drain Plug Gasket-148860$2.75In stock
36102607Ferrari Gasket - 102607SupersededOrder 148860 instead
37104483Ferrari Breather Union - 104483$169.62Available, ships in 3-6 days
3811501021Ferrari Stud M6 x 9 Stem 35 - 11501021$0.96Special order, ships in 7-14 days
41106555Ferrari LH Cylinder Head Cover - 106555Price on requestContact us for price and availability
41103779Ferrari Cover - 103779Price on requestContact us for price and availability
42103830Ferrari Heli Coil - 103830$5.00Available, ships in 3-6 days
43AW3365BBFerrari 512 BB/BBi Cam Cover Gasket Set - AW3365000BB$96.80In stock
43AW3512000BBFerrari 512BB Cam Cover Gasket Kit - AW3512000BB$192.50In stock
43AW3512000BBiFerrari 512BBi Cam Cover Gasket Kit - AW3512000BBi$231.00In stock
43147813Ferrari 365 BB/512 BB/BBi Cam Cover Gasket Left - 147813$64.58In stock
43106436Ferrari Cam Cover Gasket - 106436SupersededOrder 147813 instead
44103796Ferrari End Plate Cover - 103796$652.75Available, ships in 3-6 days
45AW3348000Ferrari 348 Mondial T Cam Cover Gasket Kit - AW3348000$163.90In stock
45150075Ferrari End Cover Gasket - 150075$11.09In stock
45104694Ferrari End Plate Gasket - 104694SupersededOrder 150075 instead
46119766TFerrari Valve Stem Seal - 119766T$13.75In stock
46119766VFerrari Valve Stem Seal - 119766V$3.30In stock
46100243Ferrari Valve Stem Oil Seal - 100243SupersededOrder 119766 instead
47102705Ferrari Union - 102705Price on requestContact us for price and availability
48102682Ferrari Stud Bolt - 102682SupersededOrder 13516524 instead
4910269750Ferrari Plug-10269750$3.99In stock
50108623Ferrari LH Exhaust Camshaft Complete - 108623$2,414.87Available, ships in 3-6 days
50108628Ferrari LH Exhaust Camshaft - 108628SupersededOrder 108623 instead
51108624Ferrari LH Inlet Camshaft Complete - 108624$2,414.87Available, ships in 3-6 days
51109459Ferrari LH Inlet Camshaft - 109459SupersededOrder 108624 instead
53102538Ferrari Cam Cap - 102538Price on requestContact us for price and availability
54102539Ferrari Cam Cap - 102539Price on requestContact us for price and availability
55102540Ferrari Cam Cap - 102540Price on requestContact us for price and availability
56102541Ferrari Cam Cap Not Available - 102541Price on requestContact us for price and availability
57102654Ferrari Cam Cap Exhaust Camshaft - 102654Price on requestContact us for price and availability
58102655Ferrari Cam Cap - 102655$28.86Special order, ships in 7-14 days
59100232Ferrari Tappet Bucket - 100232$38.46Available, ships in 3-6 days
60108667Ferrari Tappet Pad 3.25mm - 108667$15.29Available, ships in 3-6 days
60108669Ferrari Tappet Pad 3.35mm - 108669$15.74Available, ships in 3-6 days
60102833Ferrari Tappet Pad 3.50mm - 102833$17.42Available, ships in 3-6 days
60102835Ferrari Tappet Pad 3.60mm - 102835$14.97Available, ships in 3-6 days
60102836Ferrari Tappet Pad 3.65mm - 102836$16.27Available, ships in 3-6 days
60102837Ferrari Tappet Pad 3.70mm - 102837$15.24Available, ships in 3-6 days
60102838Ferrari Tappet Pad 3.75mm - 102838$14.39Available, ships in 3-6 days
60102839Ferrari Tappet Pad 3.80mm - 102839$14.97Available, ships in 3-6 days
60116104Ferrari Tappet Pad 3.87mm - 116104$13.74Available, ships in 3-6 days
60102844Ferrari Tappet Pad 4.05mm - 102844$18.00Available, ships in 3-6 days
60102845Ferrari Tappet Pad 4.10mm - 102845$15.74Available, ships in 3-6 days
604152462Ferrari Tappet Pad 4.20mm - 4152462$15.54Available, ships in 3-6 days
60102849Ferrari Tappet Pad 4.30mm - 102849$15.74Available, ships in 3-6 days
604152465Ferrari Tappet Pad 4.35mm - 4152465$13.55Available, ships in 3-6 days
60102851Ferrari Tappet Pad 4.40mm - 102851$18.04Available, ships in 3-6 days
604152468Ferrari Tappet Pad 4.50mm - 4152468$12.48Available, ships in 3-6 days
60102854Ferrari Tappet Pad 4.55mm - 102854$15.95Available, ships in 3-6 days
60108668Ferrari Tappet Pad 3.30mm - 108668$15.74Available, ships in 3-6 days
60108671Ferrari Tappet Pad 3.45mm - 108671$15.74Available, ships in 3-6 days
60102834Ferrari Tappet Pad 3.55mm - 102834$18.00Available, ships in 3-6 days
60102843Ferrari Tappet Pad 4.00mm - 102843$17.90Available, ships in 3-6 days
60102846Ferrari Tappet Pad 4.15mm - 102846$17.33Available, ships in 3-6 days
60102842Ferrari Tappet Pad 4.25mm - 102842$15.74Available, ships in 3-6 days
60102852Ferrari Tappet Pad 4.45mm - 102852$15.95Available, ships in 3-6 days
60102848Ferrari Tappet Pad 3.95mm - 102848$17.90Available, ships in 3-6 days
60108670Ferrari Tappet Pad 3.40mm - 108670$15.12Special order, ships in 7-14 days
60102840Ferrari Tappet Pad 3.85mm - 102840$16.27Available, ships in 3-6 days
60102841Ferrari Tappet Pad 3.90mm - 102841$13.74Available, ships in 3-6 days
60102847Ferrari Tappet Pad 4.20mm - 102847SupersededOrder 4152462 instead
60102850Ferrari Tappet Pad 4.35mm - 102850$15.74Available, ships in 3-6 days
60102853Ferrari Tappet Pad 4.50mm - 102853SupersededOrder 4152468 instead
60104347Ferrari Tappet Pad 4.60mm - 104347$14.39Special order, ships in 7-14 days
61102662Ferrari 365/512 Intake Valve-102662$61.44In stock
62106554KITFerrari 308 2V/Mondial Valve Kit - 106554KIT$1,875.00In stock
62106553Ferrari Exhaust Valve - 106553$65.00In stock
63102857Ferrari Valve Guide - 102857$60.28In stock
63107026Ferrari Valve Guide Oversized 13.25 - 107026$123.53Available, ships in 3-6 days
64105720Ferrari Inlet Valve Seat - 105720$87.88Available, ships in 3-6 days
64105721Ferrari Inlet Valve Seat - 105721SupersededOrder 105720 instead
65102859Ferrari Exhaust Valve Seat - 102859$92.91Available, ships in 3-6 days
66100239/240Ferrari Engine Valve Spring Set - 100239/240$30.80In stock
66100239Ferrari Valve Spring Inner - 100239$21.95Available, ships in 3-6 days
67100240Ferrari Valve Spring Outer - 100240$26.05Available, ships in 3-6 days
68106180Ferrari Valve Spring Seat Retainer - 106180$44.01Available, ships in 3-6 days
69106181Ferrari Valve Spring Seat Retainer - 106181$59.90Available, ships in 3-6 days
70144252Ferrari 365/512/F40 "Dot" Gasket - 144252$0.60In stock
70106437Ferrari Gasket - 106437SupersededOrder 144252 instead
71108332Ferrari Sleeve - 108332Price on requestContact us for price and availability
72109545Ferrari Timing Marker Plate - 109545Price on requestContact us for price and availability
73109543Ferrari Timing Marker Plate - 109543$16.10Available, ships in 3-6 days
74108005Ferrari Joint - 108005$498.76Available, ships in 3-6 days
75100279Ferrari Pin - 100279$31.05Available, ships in 3-6 days
76112547Ferrari Plug - 112547$28.23Available, ships in 3-6 days
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
92610Ferrari Pin - 92610SupersededOrder 100279 instead
136526Ferrari Sealing Ring - 136526SupersededOrder 163987 instead
13543321Ferrari Short Stud - 13543321SupersededOrder 13543324 instead
11500324Ferrari Stud - 11500324Price on requestContact us for price and availability
11501024Ferrari Stud - 11501024SupersededOrder 11501021 instead
13516521Ferrari Stud - 13516521SupersededOrder 13516524 instead
13517020Ferrari Stud - 13517020Price on requestContact us for price and availability
13517420Ferrari Stud - 13517420Price on requestContact us for price and availability
4146561Ferrari Stud - 4146561Price on requestContact us for price and availability
13516524Ferrari Stud Bolt - 13516524$2.80Special order, ships in 7-14 days
13516621Ferrari Stud Bolt - 13516621Price on requestContact us for price and availability
108675Ferrari Tappet Pad 3.40 - 108675$13.82Available, ships in 3-6 days
108677Ferrari Tappet Pad 3.50 - 108677SupersededOrder 102833 instead
4152449Ferrari Tappet Pad 3.50mm - 4152449SupersededOrder 102833 instead
4152450Ferrari Tappet Pad 3.55mm - 4152450$13.11Available, ships in 3-6 days
108685Ferrari Tappet Pad 3.90 - 108685$13.82Available, ships in 3-6 days
4152457Ferrari Tappet Pad 3.90mm - 4152457Price on requestContact us for price and availability
4152448Ferrari Tappet Pad 4.00mm - 4152448$13.63Available, ships in 3-6 days
4152461Ferrari Tappet Pad 4.15mm - 4152461$15.43Available, ships in 3-6 days
4152463Ferrari Tappet Pad 4.25mm - 4152463$16.58Available, ships in 3-6 days
4152467Ferrari Tappet Pad 4.45mm - 4152467$15.43Available, ships in 3-6 days
108699Ferrari Tappet Pad 4.60 - 108699$13.82Available, ships in 3-6 days
9160898Ferrari Valve Seal - 9160898SupersededOrder 119766 instead
9160343Ferrari Valve Spring - 9160343SupersededOrder 100240 instead
4146798Ferrari Valve Spring Inner - 4146798$29.57Available, ships in 3-6 days
4146799Ferrari Valve Spring Outer - 4146799SupersededOrder 100240 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead

All 512 BB (Carburetor) diagrams

Loading…
header Logo 3 (1)

120 Kremer Ave. Eatontown, NJ 07724
Corner of Highway 35 and Kremer Ave.
(Mile North of the Mall)

800-631-5589
info@awitalian.com

Mon – Fri 9-6
Sat, Sun closed

NOTE ABOUT IN/OUT OF STOCK

We always attempt to indicate when a part is out of stock. In the event that you order a part and we are currently out of stock, you will be notified within 24 business hours.

Please read our Shipping & Returns Policy for more information

By the same token, we have many parts or can get many parts that may not be found on our site. Please email or call with inquiries.

JOIN OUR MAILING LIST

Receive promotions directly in your email

WE ACCEPT
credit cards 03
TERMS, CONDITIONS, AND PRIVACY

Terms and Conditions & Privacy Policy AW Italian Auto Parts is a division of AW Imported Auto Parts and Service

© 1965 - 2026 • AW ITALIAN is an American Auto Part Dealer for Luxury Italian Vehicles • All Rights Reserved

Go to Top
